MS 3D Pipe v10

MS 3D Pipe v10 is a 3D piping design application for industrial plant design developed for MicroStation

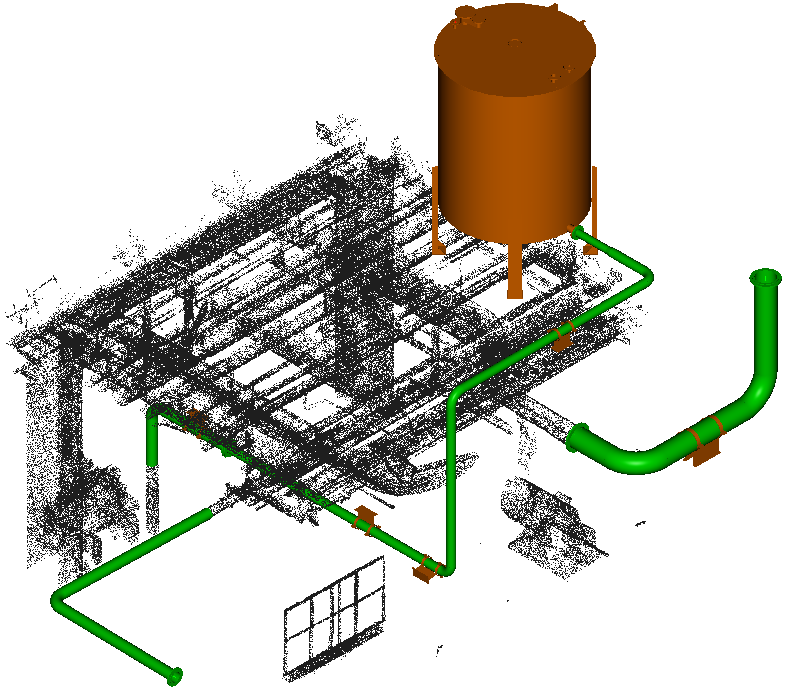

MS 3D Pipe v10 preview

“MS 3D Pipe v10 has been created for the piping designer, with the needs of the piping designer in mind. We will readily create any new 3D components you may need as a customer!”

Key features

  • Easy to use application, an excellent tool for maintenance and upkeep operations

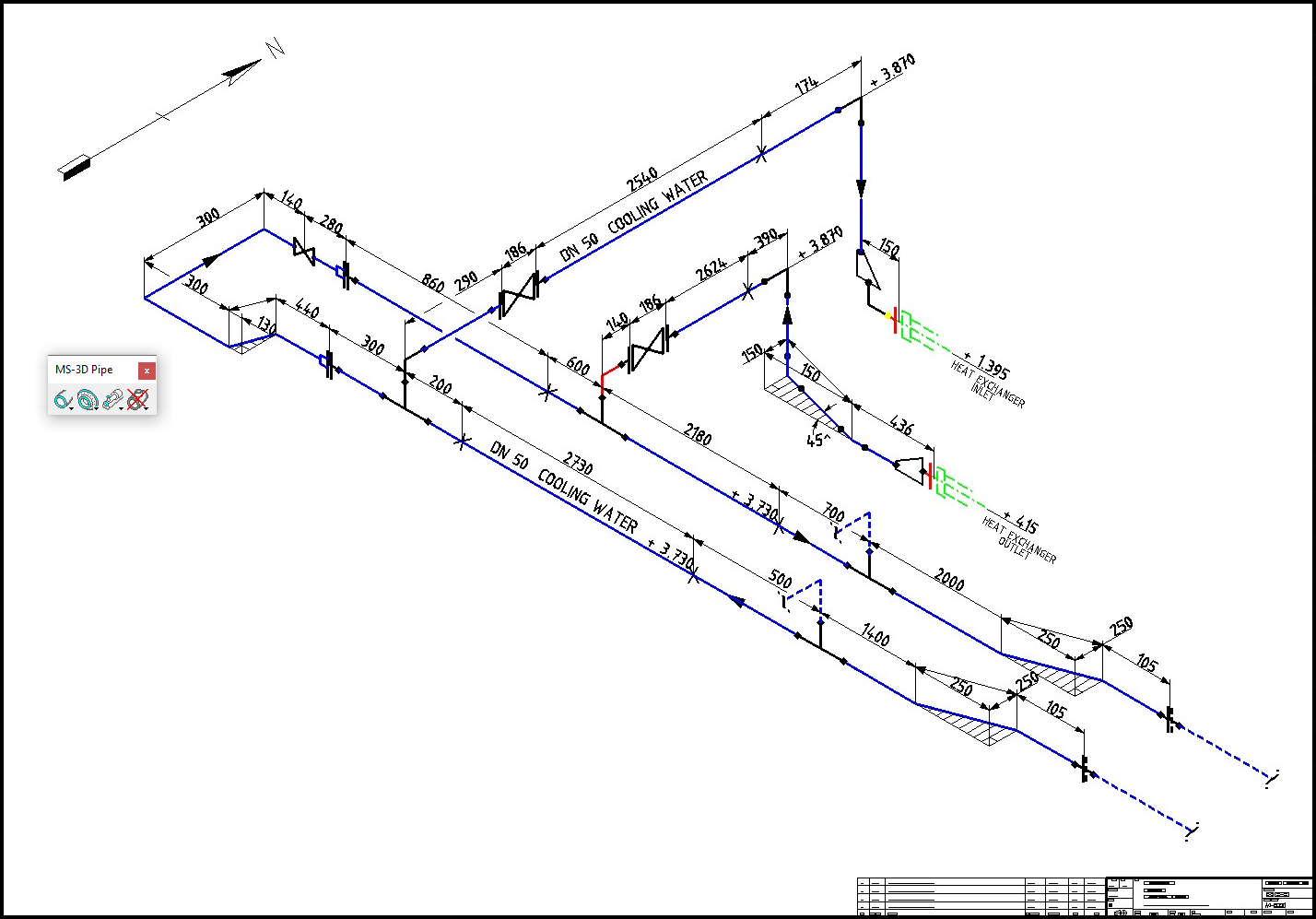

  • Isometer creation is included, you can easily create an isometer drawing from a 3D model, with parts lists

  • Thousands of 3D components are included in the application

  • All pipe classes and components defined by EN standards are included in the application

  • Reporting directly from a 3D model into an Excel spreadsheet, as well as creating and editing reports is fast and easy



1 user / month

MS 3D Pipe v10


Payment period
1-12 months


1 user / perpetual licence

MS 3D Pipe v10


One-time payment for forever licence

Maintenance not included (can be bought separately*)

12 months / licence*




Support and maintenance, newest software versions throughout the contract period
