MS Mechanics v10

MS Mechanics v10 is a 3D design application for mechanical engineering developed for MicroStation

Including all routine design needs of a mechanical engineer

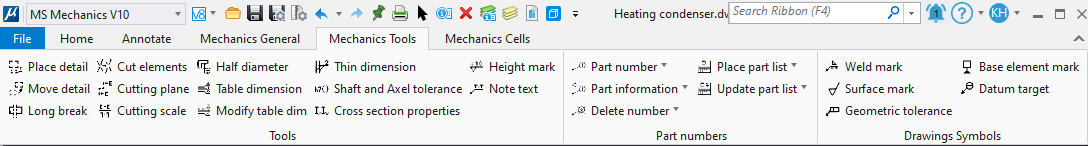

Welding marks

Shape and position tolerances

Surface markers

Sheet templates and their handling

Part numbering

Ready-made symbol libraries

Making of part lists

…and more!

“We have developed our application over the years based on the feedback from mechanical engineers to meet a wide range of mechanical design needs, and have thus succeeded in improving the productivity and quality of work.”

Key features

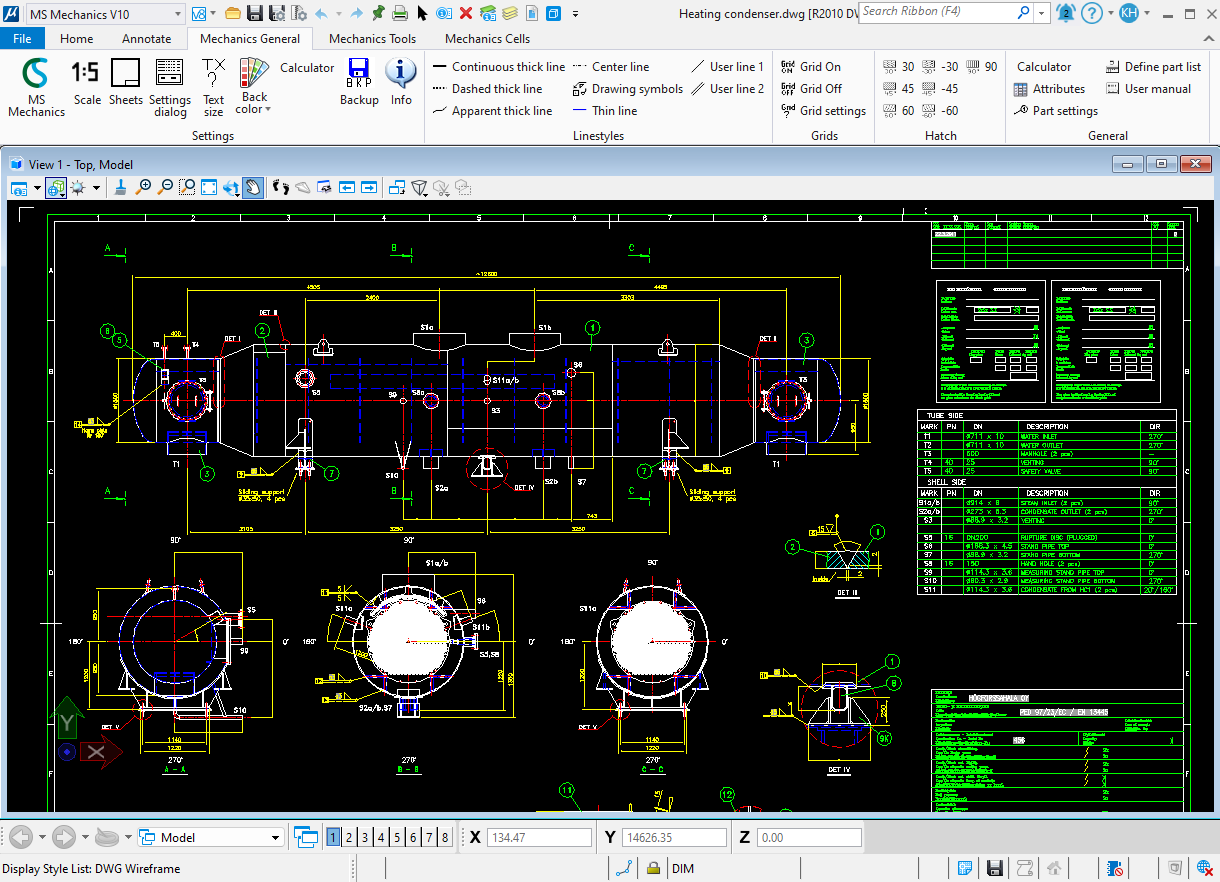

  • The application can be used to edit 2D work images also from 3D models

  • Complies with EN standards

  • The parts list can be printed in different languages

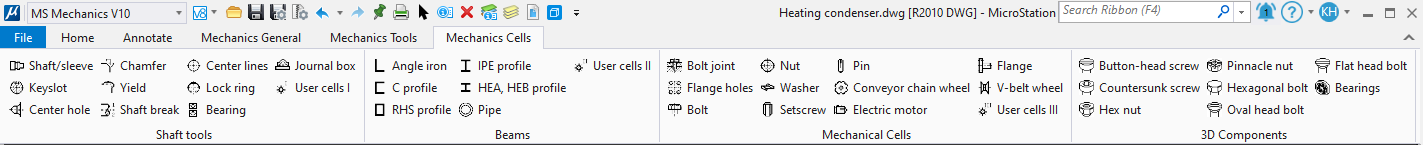

  • Dozens of functions for making shafts, sprockets, screw connections, etc.

  • DXF and DWG files can be edited easily without making difficult adjustments

  • Compatible with MicroStation Connect Edition and V8i versions


Available with or without database

MS Mechanics v10 + CISS PDM for MicroStation

With database

  • Parts lists are obtained from CISS PDM to the drawing

  • Document management features such as workflows, version control, permissions

  • Project management features

  • Works seamlessly with our other Mechanics family products such as MS Fold v10, which allows you to unfold a sheet metal part into a flat format quickly

  • CISS PDM for product and structures management together with Mechanics significantly increase the effectiveness of mechanical design and enable smooth remote working

MS Mechanics v10

Without database

  • Parts lists are made with MicroStation TAGs directly from the drawing


1 user / month

MS Mechanics v10


Payment period
1-12 months


1 user / perpetual licence

MS Mechanics v10


One-time payment for forever licence

Maintenance not included (can be bought separately*)

12 months / licence*




Support and maintenance, newest software versions throughout the contract period
