MS Fold v10

MS Fold v10 is a 2D unfolding application for MicroStation that allows the user to easily unfold a sheet metal part into a flat format

“The application originated from the need of our customers to make unfolded drawings based on measurement data. Just press Unfold!“

Key features

All common shapes are included in the application
Easy to deploy, if you have used MicroStation before, you will learn to use MS Fold v10 in minutes
Includes a calculator that allows you to extract the desired measurements from 2D drawings and 3D models
The calculator is also used to enter the measurement data into forms
Compatible with MicroStation Connect Edition and V8i versions

Screenshots

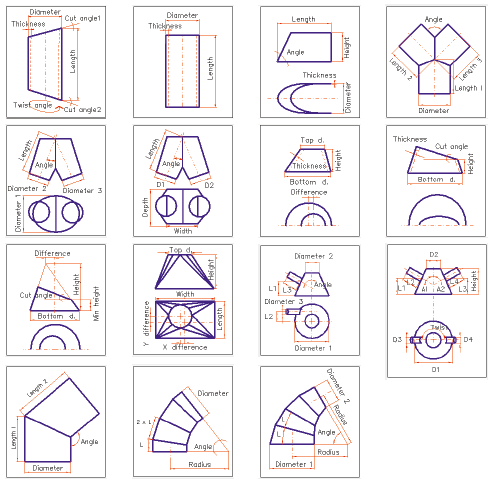

Different unfoldable shapes

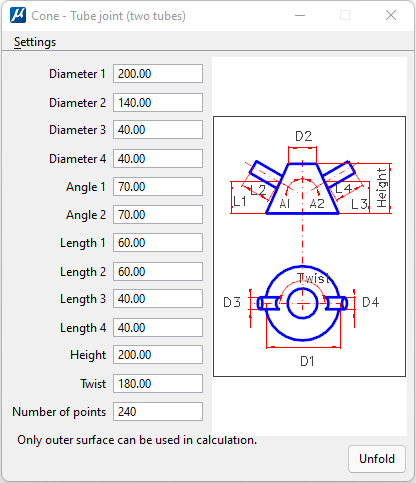

Pipe connection (tube joint two tubes)

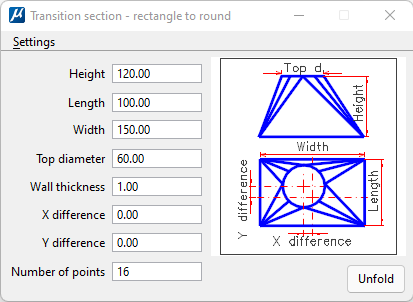

Rectangle to round

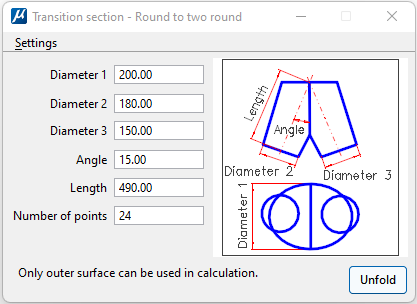

Round to two rounds
